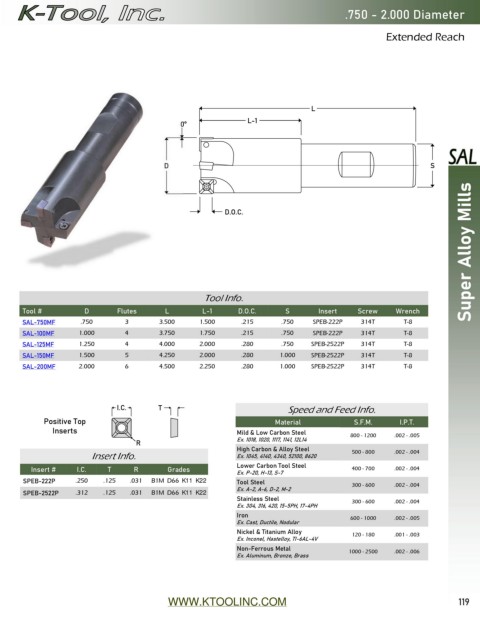

Page 119 - Catalog 15

.750 - 2.000 Diameter

Extended Reach

L
0° L-1

D S

D.O.C. Super Alloy Mills

Tool Info.

Tool # D Flutes L L-1 D.O.C. S Insert Screw Wrench
SAL-750MF .750 3 3.500 1.500 .215 .750 SPEB-222P 314T T-8
SAL-100MF 1.000 4 3.750 1.750 .215 .750 SPEB-222P 314T T-8
SAL-125MF 1.250 4 4.000 2.000 .280 .750 SPEB-2522P 314T T-8
SAL-150MF 1.500 5 4.250 2.000 .280 1.000 SPEB-2522P 314T T-8
SAL-200MF 2.000 6 4.500 2.250 .280 1.000 SPEB-2522P 314T T-8

I.C. T Speed and Feed Info.

Positive Top Material S.F.M. I.P.T.
Inserts Mild & Low Carbon Steel
Ex. 1018, 1020, 1117, 1141, 12L14 800 - 1200 .002 - .005
R
High Carbon & Alloy Steel 500 - 800 .002 - .004
Insert Info. Ex. 1045, 4140, 4340, 52100, 8620
Insert # I.C. T R Grades Lower Carbon Tool Steel 400 - 700 .002 - .004
Ex. P-20, H-13, S-7
SPEB-222P .250 .125 .031 B1M C55 X33 X40 Tool Steel 300 - 600 .002 - .004
Ex. A-2, A-6, D-2, M-2
SPEB-2522P .312 .125 .031 B1M C55 X33 X40
Stainless Steel 300 - 600 .002 - .004
Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 600 - 1000 .002 - .005
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .002 - .006
Ex. Aluminum, Bronze, Brass
