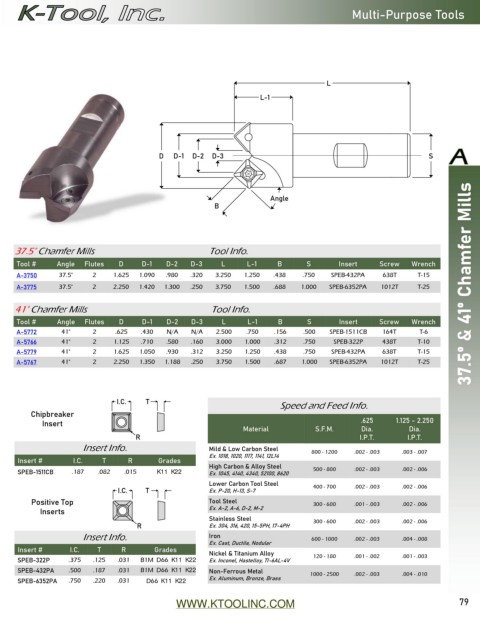

Page 79 - Catalog 15

Multi-Purpose Tools

L

L-1

D D-1 D-2 D-3 S

Angle
B

37.5° Chamfer Mills Tool Info.

Tool # Angle Flutes D D-1 D-2 D-3 L L-1 B S Insert Screw Wrench
A-3750 37.5° 2 1.625 1.090 .980 .320 3.250 1.250 .438 .750 SPEB-432PA 638T T-15
A-3775 37.5° 2 2.250 1.420 1.300 .250 3.750 1.500 .688 1.000 SPEB-6352PA 1012T T-25 37.5⁰ & 41⁰ Chamfer Mills

41° Chamfer Mills Tool Info.

Tool # Angle Flutes D D-1 D-2 D-3 L L-1 B S Insert Screw Wrench
A-5772 41° 2 .625 .430 N/A N/A 2.500 .750 .156 .500 SPEB-1511CB 164T T-6
A-5766 41° 2 1.125 .710 .580 .160 3.000 1.000 .312 .750 SPEB-322P 438T T-10
A-5779 41° 2 1.625 1.050 .930 .312 3.250 1.250 .438 .750 SPEB-432PA 638T T-15
A-5767 41° 2 2.250 1.350 1.188 .250 3.750 1.500 .687 1.000 SPEB-6352PA 1012T T-25

I.C. T Speed and Feed Info.

Chipbreaker
Insert Material S.F.M. .625 1.125 - 2.250
Dia.
Dia.
R I.P.T. I.P.T.
Insert Info. Mild & Low Carbon Steel
Ex. 1018, 1020, 1117, 1141, 12L14 800 - 1200 .002 - .003 .003 - .007
Insert # I.C. T R Grades
High Carbon & Alloy Steel
SPEB-1511CB .187 .082 .015 X33 X40 Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .002 - .003 .002 - .006
Lower Carbon Tool Steel
I.C. T Ex. P-20, H-13, S-7 400 - 700 .002 - .003 .002 - .006
Positive Top Tool Steel 300 - 600 .001 - .003 .002 - .006
Inserts Ex. A-2, A-6, D-2, M-2
R Stainless Steel 300 - 600 .002 - .003 .002 - .006
Ex. 304, 316, 420, 15-5PH, 17-4PH
Insert Info. Iron 600 - 1000 .002 - .003 .004 - .008
Ex. Cast, Ductile, Nodular
Insert # I.C. T R Grades Nickel & Titanium Alloy
SPEB-322P .375 .125 .031 B1M C55 X33 X40 Ex. Inconel, Hastelloy, TI-6AL-4V 120 - 180 .001 - .002 .001 - .003
SPEB-432PA .500 .187 .031 B1M C55 X33 X40 Non-Ferrous Metal 1000 - 2500 .002 - .003 .004 - .010
SPEB-6352PA .750 .220 .031 C55 X33 X40 Ex. Aluminum, Bronze, Brass

WWW.KTOOLINC.COM 79
