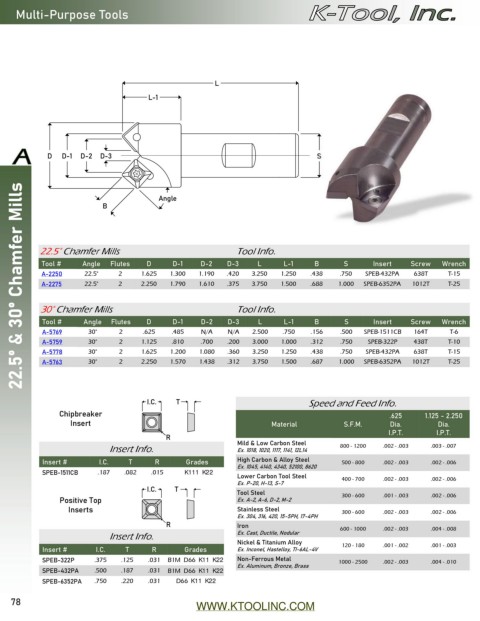

Page 78 - Catalog 15

Multi-Purpose Tools

L

L-1

D D-1 D-2 D-3 S

22.5⁰ & 30⁰ Chamfer Mills
Angle
B

22.5° Chamfer Mills Tool Info.

Tool # Angle Flutes D D-1 D-2 D-3 L L-1 B S Insert Screw Wrench
A-2250 22.5° 2 1.625 1.300 1.190 .420 3.250 1.250 .438 .750 SPEB-432PA 638T T-15
A-2275 22.5° 2 2.250 1.790 1.610 .375 3.750 1.500 .688 1.000 SPEB-6352PA 1012T T-25

30° Chamfer Mills Tool Info.

Tool # Angle Flutes D D-1 D-2 D-3 L L-1 B S Insert Screw Wrench
A-5769 30° 2 .625 .485 N/A N/A 2.500 .750 .156 .500 SPEB-1511CB 164T T-6
A-5759 30° 2 1.125 .810 .700 .200 3.000 1.000 .312 .750 SPEB-322P 438T T-10
A-5778 30° 2 1.625 1.200 1.080 .360 3.250 1.250 .438 .750 SPEB-432PA 638T T-15
A-5763 30° 2 2.250 1.570 1.438 .312 3.750 1.500 .687 1.000 SPEB-6352PA 1012T T-25

I.C. T Speed and Feed Info.

Chipbreaker .625 1.125 - 2.250
Insert Material S.F.M. Dia. Dia.
R I.P.T. I.P.T.
Insert Info. Mild & Low Carbon Steel 800 - 1200 .002 - .003 .003 - .007
Ex. 1018, 1020, 1117, 1141, 12L14
Insert # I.C. T R Grades High Carbon & Alloy Steel 500 - 800 .002 - .003 .002 - .006
Ex. 1045, 4140, 4340, 52100, 8620
SPEB-1511CB .187 .082 .015 X33 X40 Lower Carbon Tool Steel
Ex. P-20, H-13, S-7 400 - 700 .002 - .003 .002 - .006
I.C. T Tool Steel
Positive Top Ex. A-2, A-6, D-2, M-2 300 - 600 .001 - .003 .002 - .006
Inserts Stainless Steel 300 - 600 .002 - .003 .002 - .006
Ex. 304, 316, 420, 15-5PH, 17-4PH
R Iron 600 - 1000 .002 - .003 .004 - .008
Insert Info. Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .001 - .002 .001 - .003
Insert # I.C. T R Grades Ex. Inconel, Hastelloy, TI-6AL-4V
SPEB-322P .375 .125 .031 B1M C55 X33 X40 Non-Ferrous Metal 1000 - 2500 .002 - .003 .004 - .010
Ex. Aluminum, Bronze, Brass
SPEB-432PA .500 .187 .031 B1M C55 X33 X40
SPEB-6352PA .750 .220 .031 C55 X33 X40

78
