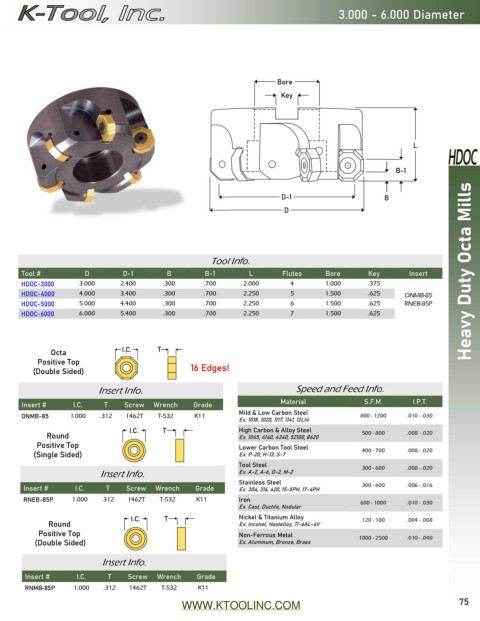

Page 75 - Catalog 15

3.000 - 6.000 Diameter

Bore
Key

L

B-1

D-1 B
D

Tool Info.

Tool # D D-1 B B-1 L Flutes Bore Key Insert Heavy Duty Octa Mills
HDOC-3000 3.000 2.400 .300 .700 2.000 4 1.000 .375
HDOC-4000 4.000 3.400 .300 .700 2.250 5 1.500 .625 ONMB-85
RNMB-85
HDOC-5000 5.000 4.400 .300 .700 2.250 6 1.500 .625 RNEB-85P
HDOC-6000 6.000 5.400 .300 .700 2.250 7 1.500 .625

Octa I.C. T
Positive Top
(Double Sided) 16 Edges!

Insert Info. Speed and Feed Info.
Insert # I.C. T Screw Wrench Grade Material S.F.M. I.P.T.
Mild & Low Carbon Steel
ONMB-85 1.000 .312 1462T T-532 A10M 800 - 1200 .010 - .030
Ex. 1018, 1020, 1117, 1141, 12L14
Round I.C. T High Carbon & Alloy Steel 500 - 800 .008 - .020
Ex. 1045, 4140, 4340, 52100, 8620
Positive Top Lower Carbon Tool Steel
(Double Sided) Ex. P-20, H-13, S-7 400 - 700 .008 - .020
Tool Steel 300 - 600 .008 - .020
Insert Info. Ex. A-2, A-6, D-2, M-2
Stainless Steel 300 - 600 .006 - .016
Insert # I.C. T Screw Wrench Grade Ex. 304, 316, 420, 15-5PH, 17-4PH
RNMB-85 1.000 .312 1462T T-532 A10M Iron 600 - 1000 .010 - .030
Ex. Cast, Ductile, Nodular
I.C. T Nickel & Titanium Alloy
Round Ex. Inconel, Hastelloy, TI-6AL-4V 120 - 180 .004 - .008
Positive Top Non-Ferrous Metal
(Single Sided) Ex. Aluminum, Bronze, Brass 1000 - 2500 .010 - .040

Insert Info.

Insert # I.C. T Screw Wrench Grade
RNEB-85P 1.000 .312 1462T T-532 A10M

WWW.KTOOLINC.COM 75
