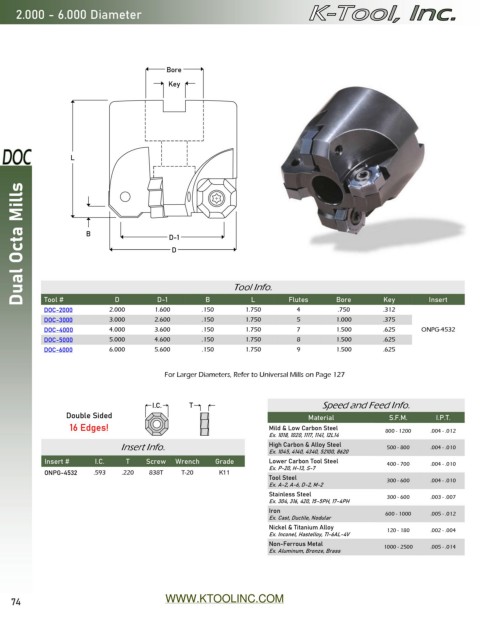

Page 74 - Catalog 15

2.000 - 6.000 Diameter

Bore

Key

L

Dual Octa Mills B D-1

D

L

Tool # D D-1 B Tool Info. Flutes Bore Key Insert
DOC-2000 2.000 1.600 .150 1.750 4 .750 .312
DOC-3000 3.000 2.600 .150 1.750 5 1.000 .375
DOC-4000 4.000 3.600 .150 1.750 7 1.500 .625 ONPG-4532
DOC-5000 5.000 4.600 .150 1.750 8 1.500 .625
DOC-6000 6.000 5.600 .150 1.750 9 1.500 .625

For Larger Diameters, Refer to Universal Mills on Page 127

I.C. T Speed and Feed Info.
Double Sided Material S.F.M. I.P.T.
16 Edges! Mild & Low Carbon Steel 800 - 1200 .004 - .012
Ex. 1018, 1020, 1117, 1141, 12L14
Insert Info. High Carbon & Alloy Steel 500 - 800 .004 - .010
Ex. 1045, 4140, 4340, 52100, 8620
Insert # I.C. T Screw Wrench Grade Lower Carbon Tool Steel 400 - 700 .004 - .010
Ex. P-20, H-13, S-7
ONPG-4532 .593 .220 838T T-20 X33
Tool Steel 300 - 600 .004 - .010
Ex. A-2, A-6, D-2, M-2
Stainless Steel 300 - 600 .003 - .007
Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 600 - 1000 .005 - .012
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .002 - .004
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .005 - .014
Ex. Aluminum, Bronze, Brass

74 WWW.KTOOLINC.COM
