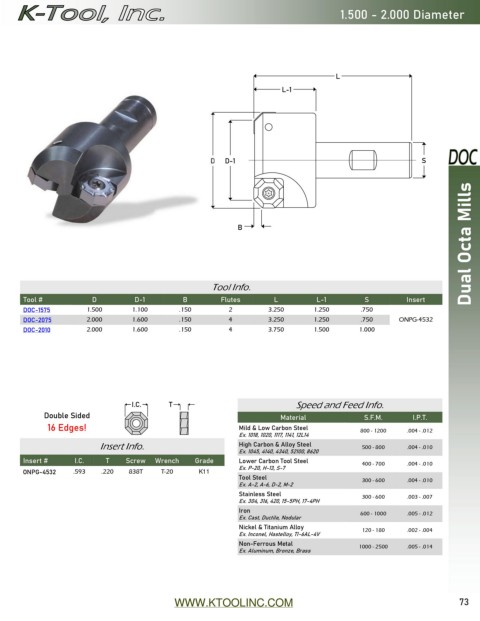

Page 73 - Catalog 15

1.500 - 2.000 Diameter

L

L-1

D D-1 S

Dual Octa Mills

B

Tool Info.

Tool # D D-1 B Flutes L L-1 S Insert
DOC-1575 1.500 1.100 .150 2 3.250 1.250 .750
DOC-2075 2.000 1.600 .150 4 3.250 1.250 .750 ONPG-4532
DOC-2010 2.000 1.600 .150 4 3.750 1.500 1.000

I.C. T Speed and Feed Info.
Double Sided Material S.F.M. I.P.T.
16 Edges! Mild & Low Carbon Steel 800 - 1200 .004 - .012
Ex. 1018, 1020, 1117, 1141, 12L14
Insert Info. High Carbon & Alloy Steel 500 - 800 .004 - .010
Ex. 1045, 4140, 4340, 52100, 8620
Insert # I.C. T Screw Wrench Grade Lower Carbon Tool Steel 400 - 700 .004 - .010
Ex. P-20, H-13, S-7
ONPG-4532 .593 .220 838T T-20 X33
Tool Steel 300 - 600 .004 - .010
Ex. A-2, A-6, D-2, M-2
Stainless Steel 300 - 600 .003 - .007
Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 600 - 1000 .005 - .012
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 120 - 180 .002 - .004
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .005 - .014
Ex. Aluminum, Bronze, Brass

WWW.KTOOLINC.COM 73
