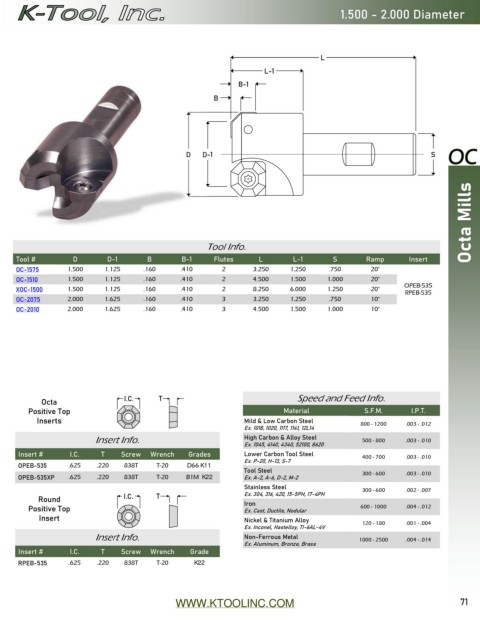

Page 71 - Catalog 15

1.500 - 2.000 Diameter

L

L-1
B-1
B

D D-1 S

Octa Mills

Tool Info.

Tool # D D-1 B B-1 Flutes L L-1 S Ramp Insert
OC-1575 1.500 1.125 .160 .410 2 3.250 1.250 .750 20°
OC-1510 1.500 1.125 .160 .410 2 4.500 1.500 1.000 20°
OPEB-535
XOC-1500 1.500 1.125 .160 .410 2 8.250 6.000 1.250 20°
RPEB-535
OC-2075 2.000 1.625 .160 .410 3 3.250 1.250 .750 10°
OC-2010 2.000 1.625 .160 .410 3 4.500 1.500 1.000 10°

Octa I.C. T Speed and Feed Info.
Positive Top Material S.F.M. I.P.T.
Inserts Mild & Low Carbon Steel 800 - 1200 .003 - .012
Ex. 1018, 1020, 1117, 1141, 12L14
Insert Info. High Carbon & Alloy Steel 500 - 800 .003 - .010
Ex. 1045, 4140, 4340, 52100, 8620
Insert # I.C. T Screw Wrench Grades Lower Carbon Tool Steel 400 - 700 .003 - .010
Ex. P-20, H-13, S-7
OPEB-535 .625 .220 838T T-20 C55 X33
Tool Steel 300 - 600 .003 - .010
OPEB-535XP .625 .220 838T T-20 B1M X40 Ex. A-2, A-6, D-2, M-2
Stainless Steel 300 - 600 .002 - .007
Round I.C. T Ex. 304, 316, 420, 15-5PH, 17-4PH
Positive Top Iron 600 - 1000 .004 - .012
Ex. Cast, Ductile, Nodular
Insert Nickel & Titanium Alloy
Ex. Inconel, Hastelloy, TI-6AL-4V 120 - 180 .001 - .004
Insert Info. Non-Ferrous Metal 1000 - 2500 .004 - .014
Ex. Aluminum, Bronze, Brass
Insert # I.C. T Screw Wrench Grade
RPEB-535 .625 .220 838T T-20 X33

WWW.KTOOLINC.COM 71
