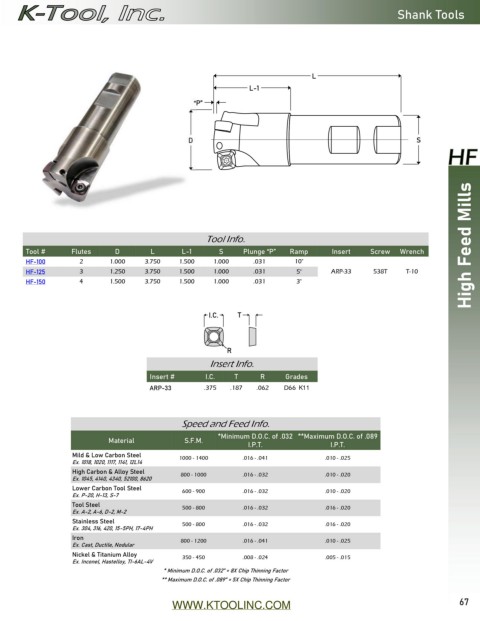

Page 67 - Catalog 15

Shank Tools

L
L-1

“P”

D S

High Feed Mills

Tool Info.

Tool # Flutes D L L-1 S Plunge “P” Ramp Insert Screw Wrench
HF-100 2 1.000 3.750 1.500 1.000 .031 10°
HF-125 3 1.250 3.750 1.500 1.000 .031 5° ARP-33 538T T-10
HF-150 4 1.500 3.750 1.500 1.000 .031 3°

I.C. T

R
Insert Info.
Insert # I.C. T R Grades
ARP-33 .375 .187 .062 C55 X33

Speed and Feed Info.

*Minimum D.O.C. of .032 **Maximum D.O.C. of .089
Material S.F.M.
I.P.T. I.P.T.
Mild & Low Carbon Steel 1000 - 1400 .016 - .041 .010 - .025
Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel 800 - 1000 .016 - .032 .010 - .020
Ex. 1045, 4140, 4340, 52100, 8620
Lower Carbon Tool Steel 600 - 900 .016 - .032 .010 - .020
Ex. P-20, H-13, S-7
Tool Steel 500 - 800 .016 - .032 .016 - .020
Ex. A-2, A-6, D-2, M-2
Stainless Steel 500 - 800 .016 - .032 .016 - .020
Ex. 304, 316, 420, 15-5PH, 17-4PH
Iron 800 - 1200 .016 - .041 .010 - .025
Ex. Cast, Ductile, Nodular
Nickel & Titanium Alloy 350 - 450 .008 - .024 .005 - .015
Ex. Inconel, Hastelloy, TI-6AL-4V
* Minimum D.O.C. of .032” = 8X Chip Thinning Factor
** Maximum D.O.C. of .089” = 5X Chip Thinning Factor

WWW.KTOOLINC.COM 67
