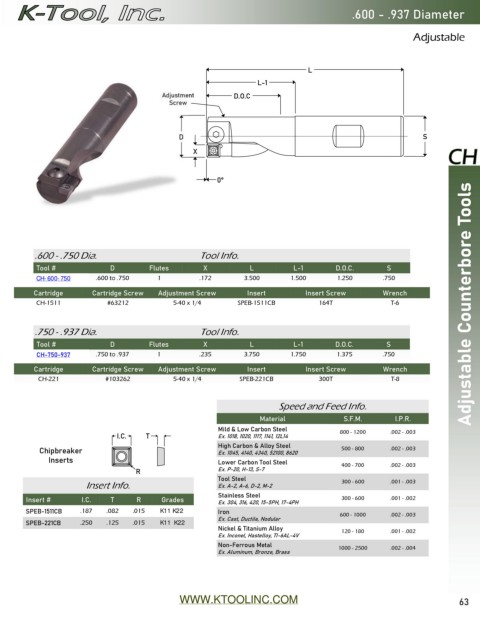

Page 63 - Catalog 15

.600 - .937 Diameter

Adjustable

L
L-1
Adjustment D.O.C
Screw

D S
X

0°

.600 - .750 Dia. Tool Info.

Tool # D Flutes X L L-1 D.O.C. S
CH-600-750 .600 to .750 1 .172 3.500 1.500 1.250 .750
Cartridge Cartridge Screw Adjustment Screw Insert Insert Screw Wrench
CH-1511 #63212 5-40 x 1/4 SPEB-1511CB 164T T-6 Adjustable Counterbore Tools

.750 - .937 Dia. Tool Info.

Tool # D Flutes X L L-1 D.O.C. S
CH-750-937 .750 to .937 1 .235 3.750 1.750 1.375 .750
Cartridge Cartridge Screw Adjustment Screw Insert Insert Screw Wrench
CH-221 #103262 5-40 x 1/4 SPEB-221CB 300T T-8

Speed and Feed Info.
Material S.F.M. I.P.R.
Mild & Low Carbon Steel
I.C. T Ex. 1018, 1020, 1117, 1141, 12L14 800 - 1200 .002 - .003
Chipbreaker High Carbon & Alloy Steel 500 - 800 .002 - .003
Ex. 1045, 4140, 4340, 52100, 8620
Inserts Lower Carbon Tool Steel
R Ex. P-20, H-13, S-7 400 - 700 .002 - .003
Tool Steel
Insert Info. Ex. A-2, A-6, D-2, M-2 300 - 600 .001 - .003
Stainless Steel
Insert # I.C. T R Grades Ex. 304, 316, 420, 15-5PH, 17-4PH 300 - 600 .001 - .002
SPEB-1511CB .187 .082 .015 X33 X40 Iron 600 - 1000 .002 - .003
Ex. Cast, Ductile, Nodular
SPEB-221CB .250 .125 .015 X33 X40
Nickel & Titanium Alloy 120 - 180 .001 - .002
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .002 - .004
Ex. Aluminum, Bronze, Brass
