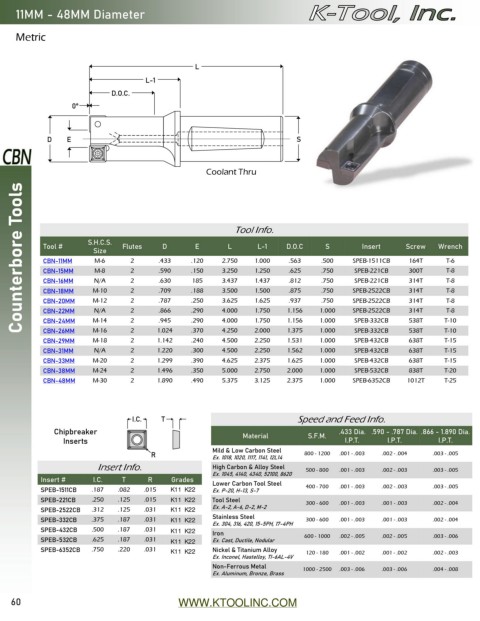

Page 60 - Catalog 15

11MM - 48MM Diameter

Metric

L
L-1
D.O.C.
0°

D E S

Coolant Thru
Counterbore Tools

Tool Info.
S.H.C.S.

Tool # Flutes D E L L-1 D.O.C S Insert Screw Wrench
Size
CBN-11MM M-6 2 .433 .120 2.750 1.000 .563 .500 SPEB-1511CB 164T T-6
CBN-15MM M-8 2 .590 .150 3.250 1.250 .625 .750 SPEB-221CB 300T T-8
CBN-16MM N/A 2 .630 185 3.437 1.437 .812 .750 SPEB-221CB 314T T-8
CBN-18MM M-10 2 .709 .188 3.500 1.500 .875 .750 SPEB-2522CB 314T T-8
CBN-20MM M-12 2 .787 .250 3.625 1.625 .937 .750 SPEB-2522CB 314T T-8
CBN-22MM N/A 2 .866 .290 4.000 1.750 1.156 1.000 SPEB-2522CB 314T T-8
CBN-24MM M-14 2 .945 .290 4.000 1.750 1.156 1.000 SPEB-332CB 538T T-10
CBN-26MM M-16 2 1.024 .370 4.250 2.000 1.375 1.000 SPEB-332CB 538T T-10
CBN-29MM M-18 2 1.142 .240 4.500 2.250 1.531 1.000 SPEB-432CB 638T T-15
CBN-31MM N/A 2 1.220 .300 4.500 2.250 1.562 1.000 SPEB-432CB 638T T-15
CBN-33MM M-20 2 1.299 .390 4.625 2.375 1.625 1.000 SPEB-432CB 638T T-15
CBN-38MM M-24 2 1.496 .350 5.000 2.750 2.000 1.000 SPEB-532CB 838T T-20
CBN-48MM M-30 2 1.890 .490 5.375 3.125 2.375 1.000 SPEB-6352CB 1012T T-25

I.C. T Speed and Feed Info.
Chipbreaker Material S.F.M. .433 Dia. .590 - .787 Dia. .866 - 1.890 Dia.
Inserts I.P.T. I.P.T. I.P.T.
R Mild & Low Carbon Steel 800 - 1200 .001 - .003 .002 - .004 .003 - .005
Ex. 1018, 1020, 1117, 1141, 12L14
Insert Info. High Carbon & Alloy Steel 500 - 800 .001 - .003 .002 - .003 .003 - .005
Ex. 1045, 4140, 4340, 52100, 8620
Insert # I.C. T R Grades Lower Carbon Tool Steel
SPEB-1511CB .187 .082 .015 X33 X40 Ex. P-20, H-13, S-7 400 - 700 .001 - .003 .002 - .003 .003 - .005
SPEB-221CB .250 .125 .015 X33 X40 Tool Steel 300 - 600 .001 - .003 .001 - .003 .002 - .004
SPEB-2522CB .312 .125 .031 X33 X40 Ex. A-2, A-6, D-2, M-2
SPEB-332CB .375 .187 .031 X33 X40 Stainless Steel 300 - 600 .001 - .003 .001 - .003 .002 - .004
Ex. 304, 316, 420, 15-5PH, 17-4PH
SPEB-432CB .500 .187 .031 X33 X40 Iron
SPEB-532CB .625 .187 .031 X33 X40 Ex. Cast, Ductile, Nodular 600 - 1000 .002 - .005 .002 - .005 .003 - .006
SPEB-6352CB .750 .220 .031 X33 X40 Nickel & Titanium Alloy 120 - 180 .001 - .002 .001 - .002 .002 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
Non-Ferrous Metal 1000 - 2500 .003 - .006 .003 - .006 .004 - .008
Ex. Aluminum, Bronze, Brass

60 WWW.KTOOLINC.COM
