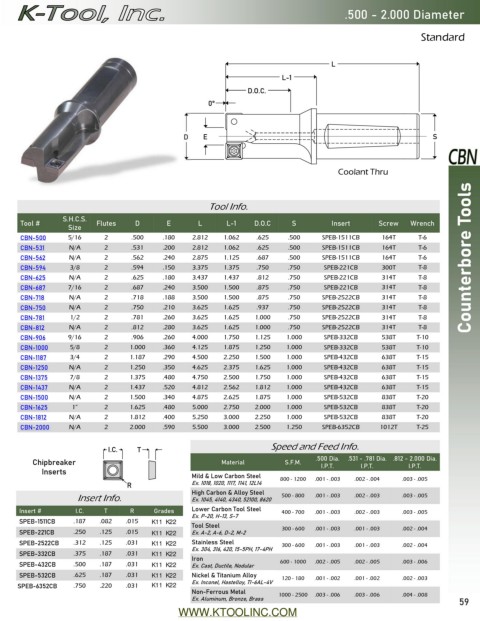

Page 59 - Catalog 15

.500 - 2.000 Diameter

Standard

L
L-1
D.O.C.
0°

D E S

Coolant Thru

Tool Info.
S.H.C.S.
Tool # Flutes D E L L-1 D.O.C S Insert Screw Wrench
Size
CBN-500 5/16 2 .500 .180 2.812 1.062 .625 .500 SPEB-1511CB 164T T-6
CBN-531 N/A 2 .531 .200 2.812 1.062 .625 .500 SPEB-1511CB 164T T-6
CBN-562 N/A 2 .562 .240 2.875 1.125 .687 .500 SPEB-1511CB 164T T-6 Counterbore Tools
CBN-594 3/8 2 .594 .150 3.375 1.375 .750 .750 SPEB-221CB 300T T-8
CBN-625 N/A 2 .625 .180 3.437 1.437 .812 .750 SPEB-221CB 314T T-8
CBN-687 7/16 2 .687 .240 3.500 1.500 .875 .750 SPEB-221CB 314T T-8
CBN-718 N/A 2 .718 .188 3.500 1.500 .875 .750 SPEB-2522CB 314T T-8
CBN-750 N/A 2 .750 .210 3.625 1.625 .937 .750 SPEB-2522CB 314T T-8
CBN-781 1/2 2 .781 .260 3.625 1.625 1.000 .750 SPEB-2522CB 314T T-8
CBN-812 N/A 2 .812 .280 3.625 1.625 1.000 .750 SPEB-2522CB 314T T-8
CBN-906 9/16 2 .906 .260 4.000 1.750 1.125 1.000 SPEB-332CB 538T T-10
CBN-1000 5/8 2 1.000 .360 4.125 1.875 1.250 1.000 SPEB-332CB 538T T-10
CBN-1187 3/4 2 1.187 .290 4.500 2.250 1.500 1.000 SPEB-432CB 638T T-15
CBN-1250 N/A 2 1.250 .350 4.625 2.375 1.625 1.000 SPEB-432CB 638T T-15
CBN-1375 7/8 2 1.375 .480 4.750 2.500 1.750 1.000 SPEB-432CB 638T T-15
CBN-1437 N/A 2 1.437 .520 4.812 2.562 1.812 1.000 SPEB-432CB 638T T-15
CBN-1500 N/A 2 1.500 .340 4.875 2.625 1.875 1.000 SPEB-532CB 838T T-20
CBN-1625 1” 2 1.625 .480 5.000 2.750 2.000 1.000 SPEB-532CB 838T T-20
CBN-1812 N/A 2 1.812 .400 5.250 3.000 2.250 1.000 SPEB-532CB 838T T-20
CBN-2000 N/A 2 2.000 .590 5.500 3.000 2.500 1.250 SPEB-6352CB 1012T T-25

I.C. T Speed and Feed Info.
Chipbreaker Material S.F.M. .500 Dia. .531 - .781 Dia. .812 - 2.000 Dia.
I.P.T.
I.P.T.
I.P.T.
Inserts
Mild & Low Carbon Steel 800 - 1200 .001 - .003 .002 - .004 .003 - .005
R Ex. 1018, 1020, 1117, 1141, 12L14
High Carbon & Alloy Steel
Insert Info. Ex. 1045, 4140, 4340, 52100, 8620 500 - 800 .001 - .003 .002 - .003 .003 - .005
Insert # I.C. T R Grades Lower Carbon Tool Steel 400 - 700 .001 - .003 .002 - .003 .003 - .005
Ex. P-20, H-13, S-7
SPEB-1511CB .187 .082 .015 X33 X40
Tool Steel
SPEB-221CB .250 .125 .015 X33 X40 Ex. A-2, A-6, D-2, M-2 300 - 600 .001 - .003 .001 - .003 .002 - .004
SPEB-2522CB .312 .125 .031 X33 X40 Stainless Steel 300 - 600 .001 - .003 .001 - .003 .002 - .004
Ex. 304, 316, 420, 15-5PH, 17-4PH
SPEB-332CB .375 .187 .031 X33 X40 Iron
SPEB-432CB .500 .187 .031 X33 X40 Ex. Cast, Ductile, Nodular 600 - 1000 .002 - .005 .002 - .005 .003 - .006
SPEB-532CB .625 .187 .031 X33 X40 Nickel & Titanium Alloy 120 - 180 .001 - .002 .001 - .002 .002 - .003
Ex. Inconel, Hastelloy, TI-6AL-4V
SPEB-6352CB .750 .220 .031 X33 X40
Non-Ferrous Metal 1000 - 2500 .003 - .006 .003 - .006 .004 - .008
Ex. Aluminum, Bronze, Brass 59
WWW.KTOOLINC.COM
